SOURCING GUIDE · SWIMMING POOL TILE SPECIFICATION · ZONE CONTROL
Swimming Pool Tile Specification Checklist: Basin, Waterline, Deck and System Pieces
A swimming pool tile specification checklist starts with a zone schedule. Identify submerged surfaces, waterlines, steps, overflow details and surrounding decks. Then verify the exact tile, mounting, installation system and evidence required for each zone.
A pool package is usually a system of materials and interfaces rather than one generic tile. Field tile, mosaics, trims, grates, waterproofing, adhesive, grout, movement joints, water treatment and maintenance can affect the finished work. The buyer brief should make these responsibilities visible before factories quote.
TILE IN CHINA is a sourcing service operated by LEIYUAN INDUSTRIAL CO.,LTD. (“LEIYUAN”). We can coordinate product options, samples, supplier documents, order follow-up, sheet checks, packing and shipment. Pool design, waterproofing, system compatibility, installation and local compliance must be confirmed by the responsible designers, system providers and contractors.
Swimming Pool Tile Specification: Divide the Package Into Use Zones
Submerged walls and floors, the waterline, benches, steps, overflow channels and walking decks do not necessarily share the same risk profile. Depth perception, bare-foot traffic, cleaning chemicals, water balance, drainage and edge visibility may change by zone. A marked drawing and finish schedule are more reliable than a single line reading pool tile.
The finish schedule should also separate the tile from the installation system. A suitable tile does not make an unsuitable substrate, waterproofing, adhesive or grout suitable. Ask the system manufacturer or responsible specifier to confirm compatible materials and installation instructions for the project conditions.
Submerged Surfaces
Define tile type, format, finish, joint pattern, water chemistry context, cleaning regime and the system intended behind the tile.
Steps, Waterlines & Overflows
Schedule contrast, trims, radii, levels, channel modules and transitions. Small missing components can delay an otherwise complete shipment.
Surrounding Decks
Treat walking surfaces as their own outdoor wet-use zone, with drainage, slip evidence, heat exposure and installation method reviewed separately.
Swimming Pool Tile Specification Matrix
Use this matrix to assign evidence and approvals by component. It is a briefing tool, not a substitute for project specifications or local aquatic-facility requirements.
| Package element | Define before quotation | Buyer evidence or control | Common hidden risk |
|---|---|---|---|
| Field tile | Use zone, code, colour, finish, size, thickness and quantity | Datasheet, labelled sample, scope-matched reports and layout schedule | A catalogue image is treated as a production control sample |
| Mosaic sheet | Chip size, sheet size, joint, mounting method and orientation | Front/back sample, sheet drawing and mounting declaration | Sheet dimensions or joints do not coordinate with the layout |
| Steps and markers | Contrast intent, width, location, module and quantity | Approved colour relationship and component schedule | Contrast is assumed rather than approved by the designer |
| Waterline and trim | Band height, corners, radii, edge pieces and termination | Marked elevations and trim samples | Standard trims do not fit project geometry |
| Wet walking areas | Drainage, bare-foot use, cleaning and finish requirement | Applicable slip evidence for the exact surface and specifier review | A rough appearance is accepted as proof of suitability |
| Installation system | Substrate, waterproofing, adhesive, grout and movement joints | System-provider instructions and compatibility confirmation | Tile supply is mistaken for system design approval |
| Water exposure | Pool type, water treatment and maintenance conditions | Relevant product evidence and written system advice | A broad chemical-resistant claim covers every concentration and exposure |
| Packing | Component separation, labels, sheet protection and pallet plan | Packing sample, carton map and quantity reconciliation | Similar-looking components are mixed or installed in the wrong zone |
| Site reserve | Cutting, complex geometry, repairs and future matching need | Buyer-approved take-off and spare-stock schedule | One generic waste percentage fits every pool layout |
Do not adopt a universal water absorption, slip or chemical threshold from this guide. The appropriate requirement depends on the project, product class, test method, use zone and destination rules.
Swimming Pool Tile Specification: What Buyers Should Verify
Verify the complete component identity and the evidence chain before the order becomes difficult to change. Where safety or system performance is involved, obtain review from the responsible qualified party.
- Zone schedule: Identify where every product code will be installed, including submerged areas, waterlines, steps, benches, channels, decks and transitions.
- Product identity: Align code, material description, colour, finish, format, thickness and manufacturing source across quotation, sample, datasheet and order.
- Mosaic mounting: Record whether sheets use mesh, dots, paper, film or another method, and have the installation-system provider assess coverage and compatibility.
- Sheet geometry: Check chip size, joint width, sheet dimensions, squareness, orientation and how adjacent sheets interlock or align.
- Wet-use evidence: Request relevant test information for the exact surface and let the specifier assess it for each intended walking zone and maintenance regime.
- Water and chemical context: State the intended pool and treatment conditions, then review product and system guidance without turning broad declarations into unlimited resistance claims.
- System compatibility: Confirm substrate preparation, waterproofing, adhesive, grout, sealant and movement joints with the responsible system supplier and designer.
- Colour and visual range: Approve the sample set, blend, iridescence or variation under relevant lighting and, where important, under water or a representative viewing condition.
- Special pieces: Count internal and external corners, radii, steps, drains, overflow modules, edge markers and replacement pieces against drawings.
- Packing identification: Require zone, code, colour, batch and quantity labels that remain readable through delivery and site distribution.
Swimming Pool Tile Specification Checklist: Four Control Stages
The objective is to keep visual selection, technical review and component logistics connected without confusing their different approval owners.
1. Zone
Mark every finish area on plans and schedules. Add quantities, tile or mosaic format, required transitions, installation context and unresolved decisions.

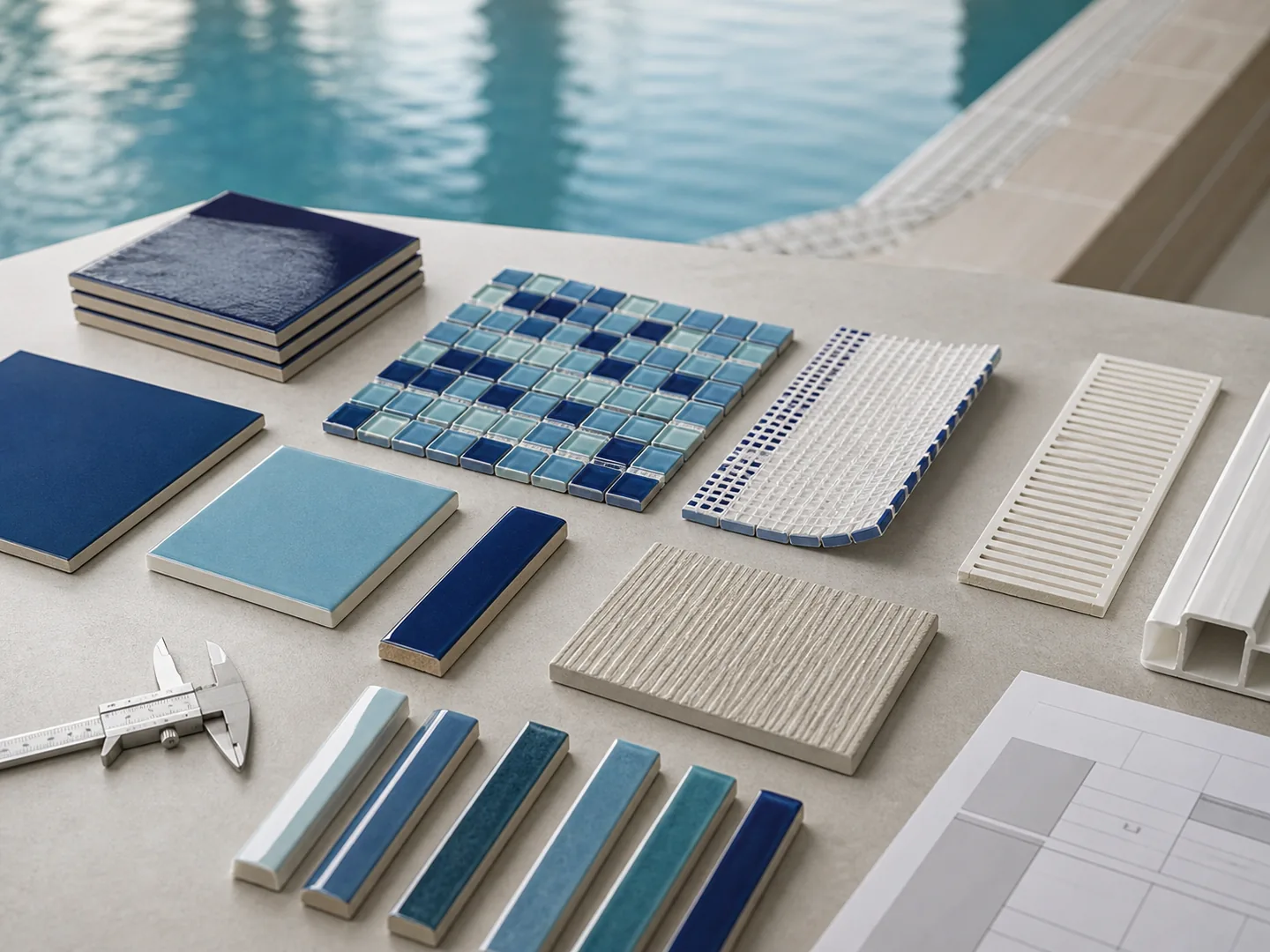

2. Sample
Request labelled face and reverse samples, relevant trims and a representative blend. Check module coordination and obtain installer or system-provider feedback where needed.
3. Document
Freeze the approved codes, sample references, sheet construction, packing rules, evidence register and inspection criteria in the purchase file.
4. Inspect
Before shipment, sample identity, sheet geometry, visible quality, component counts, labels and packing against the approved file. Record limitations and any deviations.
Swimming Pool Tile Specification: Separate Product, System and Project Evidence
Product data may describe the tile or mosaic tested. System documents may describe waterproofing, adhesive or grout used under defined conditions. Project design decides how those products are assembled for the actual pool. Buyers should retain all three layers without treating one as proof of the others.
For any report, verify the test method, laboratory, date, specimen code, material, size, finish and result. If the offered product differs from the specimen, record the difference and ask the responsible reviewer whether additional evidence is required. A certificate mark or catalogue icon without traceable scope is not enough for a high-consequence decision.
- Maintain a component register linking each use zone to one approved factory code and sample.
- Keep mosaic mounting declarations and reverse-side photographs with the order record.
- Record who approved waterproofing, adhesive, grout and movement-joint compatibility.
- Distinguish a measured result from a sales claim such as anti-slip, pool grade or chemical proof.
- Check whether test evidence applies to the face finish actually ordered, not merely the series name.
- Use a project-specific inspection plan; a visual pre-shipment check cannot reproduce every laboratory or installed-system test.
Swimming Pool Tile Specification Standards to Verify
These official ISO entries can help buyers identify ceramic-tile classification and a water-absorption test method. They do not approve an entire pool finish or installation system.
- ISO 13006:2018 — Ceramic tiles: Definitions, classification, characteristics and marking — Check the official scope and exclusions, including whether a mosaic or accessory falls outside the cited product standard.
- ISO 10545-3:2018 — Determination of water absorption and related properties — Use the official method entry to verify the test reference, then compare the specimen identity and result with the exact offered product.
The appropriate product category, result and acceptance criterion must come from the project and destination requirements. Neither link establishes wet-slip, chemical, waterproofing or installed-pool compliance.
Related Product and Buyer Routes
Swimming Pool Tiles
Review the commercial range and prepare an enquiry through swimming pool tiles.
Mosaic Sheet Checks
Use the companion guide to alignment, joint and mounting checks.
Outdoor Porcelain Pavers
For surrounding decks and landscape zones, compare the outdoor porcelain paver route.
Project Tile Sourcing
Coordinate drawings, schedules and approvals through tile sourcing for projects.
Quality Inspection & Shipping
Connect component controls to inspection, packing and shipping.
Prepare a Sourcing Brief
Structure the first supplier request with the tile sourcing brief guide.
How TILE IN CHINA Helps
TILE IN CHINA, a service operated by LEIYUAN, can consolidate the finish schedule, ask suppliers for clearly identified products and mounting details, coordinate sample sets, record evidence gaps and follow approved components through production, inspection, packing and export logistics. This gives the buyer one structured commercial record instead of disconnected messages.
We do not design or warrant the pool, waterproofing or installation system. We also do not turn a supplier declaration into a destination-market approval. Those decisions remain with the responsible designer, consultant, system provider, installer, buyer and authority. Our reporting states what was supplied, reviewed or observed and what remains unverified.
Frequently Asked Questions
Is every porcelain or glass mosaic suitable for a swimming pool?
No generic material name proves suitability. Define the use zone and system, then review the exact product identity, mounting, applicable evidence and manufacturer guidance with the project professionals.
Which mosaic mounting method is best for pools?
There is no universal answer. Mesh, dots, paper, film and other systems differ in coverage and installation sequence. The installer and system provider should review the exact sample and written mounting information.
Can a tile supplier confirm the waterproofing system?
The supplier may provide product information, but waterproofing and installation-system design should be confirmed by the responsible designer and system manufacturer for the actual substrate and conditions.
How should pool tile colour be approved?
Use labelled samples or a documented control range. For visually sensitive areas, review multiple sheets, the planned blend and relevant lighting or water-viewing conditions before freezing the order.
What can be checked before shipment?
A defined inspection can sample codes, dimensions, sheet alignment, mounting, visible appearance, quantities, labels and packing. It cannot replace laboratory tests or prove the performance of the installed pool system.
Should deck tile be ordered as part of the same pool package?
It can be commercially coordinated, but the surrounding deck should keep its own use-zone specification, wet-surface review, drainage concept, installation method and acceptance criteria.
Prepare a Swimming Pool Tile Specification Enquiry
Use this swimming pool tile specification checklist when sending the finish schedule, marked drawings, quantities, component list, destination and known installation system. TILE IN CHINA can organise product and supplier comparisons while keeping unverified technical decisions visible.
